Cruıse wıth Confıdence: Introducıng Pace Yachts

Embark on a voyage with Pace Yachts, where our commitment toa excellence echoes the principles of reliability and durability. Crafted with precision and innovation, our vessels embody the essence of seaworthiness, instilling unwavering confidence in every journey. Utilizing advanced technology and high-tech composites, including vacuum infusion technique with vinylester resin and stitch biaxial fibers, each component is engineered to withstand the harshest marine conditions. Trust in Pace Yachts for a maritime experience defined by performance and dependability.”

Main Characteristics
Propulsion & Performance
Equipment List & MSRP

Main Characteristics

Specıfıcatıon	Imperıal	Metrıc
Specıfıcatıon Overall Length incl. Engines	Imperıal 34' 6"	Metrıc 10.50 meters
Specıfıcatıon Beam	Imperıal 10' 6"	Metrıc 3.20 meters
Specıfıcatıon Bridge Clearance incl. Light/Radar Mast	Imperıal 9' 4"	Metrıc 2.83 meters
Specıfıcatıon Draft to Propellers	Imperıal 1' 12"	Metrıc 0.60 meters
Specıfıcatıon Displacement w/ Engines	Imperıal 11,640 lbs	Metrıc 5280 Kgs
Specıfıcatıon Fuel Tank Capacity	Imperıal 300 gal	Metrıc 1135 liters
Specıfıcatıon Fresh Water Tank Capacity	Imperıal 29 gal	Metrıc 108 liters
Specıfıcatıon Black Water Tank Capacity	Imperıal 29 gal	Metrıc 108 liters
Specıfıcatıon Standard Engines	Imperıal Twin 300 HP Digital Yamaha Offshore Outboards	Metrıc Twin 300 HP Digital Yamaha Offshore Outboards
Specıfıcatıon Maximum Speed	Imperıal 45 Knots	Metrıc 84 kmhr
Specıfıcatıon Cruising Speed	Imperıal 28 Knots	Metrıc 52 kmhr
Specıfıcatıon Fuel Consumption @ Maximum Speed	Imperıal 50 gal/hr	Metrıc 190 lph
Specıfıcatıon Fuel Consumption @ Cruising Speed	Imperıal 28 gal/hr	Metrıc 105 lph
Specıfıcatıon Range @ Maximum Speed w/ 10% Reserve	Imperıal 248 NM	Metrıc 460 KM
Specıfıcatıon Range @ Cruising Speed w/ 10% Reserve	Imperıal 273 NM	Metrıc 506 KM
Specıfıcatıon Berths	Imperıal 2 Persons with an enclosed head	Metrıc 2 Persons with an enclosed head
Specıfıcatıon Construction	Imperıal Vacuum infused Fiberglass Reinforced Polymer (FRP) construction with foam cored hull sides above static waterline	Metrıc Vacuum infused Fiberglass Reinforced Polymer (FRP) construction with foam cored hull sides above static waterline
Specıfıcatıon Hull Design	Imperıal Twin-Stepped Hull with an 18° V Transom	Metrıc Twin-Stepped Hull with an 18° V Transom
Specıfıcatıon Classification	Imperıal IACS approved Turkish Loyd CE Certified Category B-Offshore ABYC Compliant	Metrıc IACS approved Turkish Loyd CE Certified Category B-Offshore ABYC Compliant
Specıfıcatıon Maximum Number of Crew	Imperıal 8	Metrıc 8

Propulsion & Performance

Engıne	US standard	Us optıon I	Us optıon II
Engıne Outboard Engines	US standard Yamaha 4.2L V6 Offshore F300	Us optıon I Yamaha 4.3L V6 Offshore F350	Us optıon II Yamaha 5.6L V8 XTO Offshore F450
Engıne HP	US standard 2 x 300	Us optıon I 2 x 350	Us optıon II 2 x 450
Engıne Max. Speed	US standard 45 Knots	Us optıon I 50 Knots	Us optıon II 61 Knots
Engıne Cruising Speed	US standard 28 Knots	Us optıon I 35 Knots	Us optıon II 43 Knots
Engıne Range @ Maximum Speed w/ 10% Reserve	US standard 248 NM	Us optıon I 227 NM	Us optıon II 208 NM
Engıne Range @ Cruising Speed w/ 10% Reserve	US standard 273 NM	Us optıon I 270 NM	Us optıon II 276 NM
Engıne Fuel Consumption @ Maximum Speed	US standard 50.2 gal/hr	Us optıon I 58.6 gal/hr	Us optıon II 75.3 gal/hr
Engıne Fuel Consumption @ Cruising Speed	US standard 27.7 gal/hr	Us optıon I 32.4 gal/hr	Us optıon II 41.6 gal/hr
Engıne Fuel Economy @ Max. Speed	US standard 1.11 gal/NM	Us optıon I 1.16 gal/NM	Us optıon II 1.23 gal/NM
Engıne Fuel Economy @ Cruising Speed	US standard 0.99 gal/NM	Us optıon I 0.92 gal/NM	Us optıon II 0.97 gal/NM

Equipment List & MSRP

CATEGORY	EQUPMENT	STANDARD/OPTION
BASE MODEL	Pace 35 Cabin	Option
BASE MODEL	Pace 35 Open	Option
HULL GELCOAT COLOR	White RAL 9010	Standard
	Cream RAL 9001	Option
	Yellow RAL 1021	Option
	Blue RAL 5024	Option
ENGINES	2 x Yamaha 4.2L V6 Offshore F300	Standard
	2 x Yamaha 4.3L V6 Offshore F350	Option
	2 x Yamaha 5.6L V8 XTO Offshore F450	Option
RIGGING & CONTROLS	Yamaha Helm Master EX Control System	Option
	Yamaha Twin-Engine DEC Binnacle Control	Standard
	Yamaha CL5 5" Touchscreen Display	Standard
	Yamaha Twin-Engine Main Station Switch Kit	Standard
	Yamaha Digital Electric Steering Module	Standard
	Yamaha Autopilot with control panel	Standard
	Yamaha Integrated Automatic Trim Tabs	Standard
	Yamaha Saltwater II Series Propellers	Standard
	Yamaha Saltwater XL4 - HP Series Propellers	Option
MAIN SYSTEM	300 GAL / 1135 L Fuel Tank w/ overflow prevention	Standard
	Fresh Water Tank 28 GAL / 108 L	Standard
	Black Water Tank 28 GAL / 108 L	Standard
	3 x 1100 GPH Rule-Mate Automatic Bilge Pump, 12 Volt	Standard
	1 x Manual Bilge Pump	Standard
	Prepared Bow Thruster Tunnel	Standard
	Sleipner Side-Power SE50 110 lbs 12V Bow Thruster (or equivalent) with Control Panel	Option
	Prepared Mounting Space for Seakeeper 2 Stabilizer	Standard
	Seakeeper 2 Stabilizer with a Battery	Option
	VTE Paguro 4EY 4000 3.2KW 60Hz Diesel Generator	Option
	Marinco 30A 60Hz 125V or 50Hz 250V SS Shore Power Inlet	Standard
	Marinco 25' 30A 125V or 250V Shore Power Cordset	Standard
	Mastervolt CombiMaster 12/3500-200 (120 V) Inverter/Charger	Standard
	2 x 200Ah 12V AGM Slim Starting Batteries	Standard
	2 x 200Ah 12V AGM Slim Windlass & House Batteries	Option
	2 x 200Ah 12V AGM Slim Gel House Batteries	Option
	Simarine Nereide Pro Digital AC & DC Electrical Distribution Switchboard	Option
	CZone 5" Touch Screen Display control & monitoring integrated w/ Chartplotter	Option
	4 x 5V/6A USB-A & USB-C Power Sockets	Standard
	Wireless Phone Charger/Holder	Standard
	4 x 110 VAC Receptacles	Standard
	2 x 110VAC GFCI Receptacles	Standard
	Solar Panel System	Option
ELECTRONICS	Simrad NSX 3012UW 12” SolarMAX IPS display with Active Imaging™	Standard
	Simrad NSX 3015UW 15” SolarMAX IPS display with Active Imaging™	Option
	Simrad HALO® 2003 Open Array Radar	Standard
	Simrad HALO® 3004 Open Array Radar	Option
	Simrad Precision-9 Compass	Standard
	Simrad RS 40 VHF Radio with AIS receiver	Option
	Simrad RS 100 VHF Radio with Black Box, Handset & Speaker	Option
	Simrad VHF, RS40-b, with Class B AIS & Hailer	Option
	Simrad VHF Antenna or eqv.	Option
EXTERIOR	316L Stainless Steel 32 mm (1 & 1/4") Handrails	Standard
	Powder Coated Aluminium 32mm (1 & 1/4") Handrails	Standard
	8 x 316L Stainless Steel Cleats	Standard
	2 x Pop-Up Cleats on Swim Platform	Standard
	Synthetic Teak Swim Platform, Cockpit & Deck Flooring	Standard
	Synthetic Teak Pilothouse & Cabin Flooring	Option
	Real Teak Deck & Interior Flooring	Option
	Courtesy LED Lighting on Deck	Standard
	Courtesy LED Lighting on Cockpit	Standard
	3 x Underwater Lights (White+)	Option
	LED Navigation Lights	Standard
	LED Spotlight with Remote	Option
	2 x LED Flood/Spread Lights for Cockpit	Option
	Windscreen Wiper Set with Washing & Control Switch	Standard
	Webasto 20 Series Electric Sunroof	Option
	Webasto Electric Sunroof Screen Shades	Option
	Webasto Telescopic Aft Deck Sun Shade 2500	Option
	Lewmar Galvanized Delta Anchor 35 lbs / 16 kg	Standard
	Lewmar Stainless Steel Delta Anchor 35 lbs / 16 kg	Option
	Lewmar V3 1000W Vertical Windlass w/Capstan (or equivalent)	Standard
	164 feet / 50 Meter Galvanized Anchor Chain	Standard
	164 feet / 50 Meter Stainless Steel Anchor Chain	Option
	Foredeck Sunpads	Standard
	Aft Deck Side Seats Cushions	Option
	Aft Deck Rear Bench Seat Module	Option
	Aft Deck Front Bench Seat Module	Option
	Height Adjustable Folding Table Module	Option
	Wet Bar Module with Grill, Sink & Icemaker	Option
	Wet Bar Module with Grill, Sink, Icemaker & Fridge	Option
	Transom Livewell 40 gal / 150 liters	Option
	Transom Fish Box 40 gal / 150 liters	Option
	8 x Stainless Steel Clamp-On Rod Holders	Option
	Hardtop Handrails	Standard
	Hardtop Roof Racks	Option
	1 Pair of 15 ft Telescoping Outrigger System on Hardtop	Option
	1 Pair of 18 ft Telescoping Outrigger System on Hardtop	Option
	Swim Platform Telescopic Ladder	Standard
	2 x Side Deck Storage Compartments	Standard
	Stainless Steel Flag Pole	Standard
	6 x Fenders with Ropes, 8 x 15' Long 1/2" Thick Dock Lines & Boat Hook	Option
	2 x Watertight Transom Doors	Option
	2 x Stainless Steel Transom Doors	Option
	2 x Port & Starboard Boarding Dive/Tuna Doors	Standard
	Rubber Rub Rails	Standard
	12V Single Trumpet Air Horn	Standard
	Chain Washer (Salt Water)	Option
	Aft Deck Hot & Cold Shower	Option
	Bottom Antifouling Paint	Option
	Single Line Boot Stripe	Standard
INTERIOR	Quick FLB32003S120A00 Nautic Boiler, 5.3 Gal, 12V, 300W	Option
	Galley Module with Cooktop, Sink & Fridge	Standard
	Galley Module with Cooktop, Sink, Fridge, Microwave & Seat	Option
	3 x Smoke & Carbon Monoxide Detectors	Standard
	MBC Marine SDC 12V 7K BTU Cooling & 8K BTU Heating Air Conditioner in Cabin	Option
	MBC Marine SDC 12V 7K BTU Cooling & 8K BTU Heating Air Conditioner in Pilot House	Option
	Webasto Airtop Evo 40 12V Diesel Heater	Option
	Webasto Airtop Evo 55 12V Petrol Heater	Option
	Bed for Two in Forward Cabin 200 x 140 cm (6' 6" x 4' 7")	Standard
	Escape Hatch	Standard
	Storage Compartments	Standard
	Hanging Closet	Standard
	32" LED HD Smart TV	Option
	Dual Facing Wide Helm Seat for Two with Bolsters & Armrests	Standard
	Foldable Footrest	Standard
	Salon Bench Seating Module with Dual Facing Backrest	Standard
	Height Adjustable Folding Table Module	Standard
	Ceiling Grab Rails	Standard
	Solex Green or Gray Tinted Tempered Glass Windows	Standard
	Double Bifold Rear Pilothouse Doors	Standard
	Hydraulic Servery Concession Awning Window (instead of a Bifold Rear Pilothouse Door)	Option
	Pilothouse Starboard Side Sliding Glass Door	Standard
	Pilothouse Port Side Sliding Window	Standard
	Pilothouse FBR Roof with Glass Sky or Semi-Translucent Solar Panel Window	Option
	Windscreen Defrosting Vents in combination with optional AC Units & Heater	Option
	12V Electric Toilet with Flush Control	Standard
	Sink with Faucet	Standard
	Macerator	Standard
	Fresh Water Pump	Standard
	Mirror	Standard
	Porthole	Standard
	Lighting	Standard
	PVC Kaymaz Zemin	Standard
	Shower	Standard
	Marinco Day/Night Plus Solar Ventilation Fan	Standard
	316L Stainless Steel Grab Rails	Standard
	4 x B-I rated Fire Extinguishers	Standard
	2 x Automatic/Manual Inflatable Life Jackets	Standard
	8 x Automatic/Manual Inflatable Life Jackets	Option
	USCG Mandatory Safety Package	Standard
ENTERTAINMENT	Kicker KMC2 Music System w/ Four Speakers	Standard
ENTERTAINMENT	Kicker KMC5 Music System w/ Six Speakers & Amplifier	Option
SHIPPING & HANDLING	FOB CESME or IZMIR SEA PORT	Standard
SHIPPING & HANDLING	SHIPPING, HANDLING, CUSTOMS DUTY & DELIVERY TO U.S.A. (EAST COAST)	Option

Key features

PERFORMANCE

Experience the epitome of advanced performance with Pace Yacht. Engineered for efficiency and agility, our yacht boasts exceptional acceleration, allowing for swift planning starts from just 16 knots. With a twin stepped hull design, Pace Yacht achieves remarkable fuel efficiency while maintaining stable high speeds even in rough seas up to 5 sea states. Our innovative hull design with reversed chines ensures superior maneuverability, enabling the vessel to execute 180-degree turns at 40 knots with ease, even with a full complement of 10 passengers, without sacrificing speed. Drawing on our extensive military expertise, Pace Yacht delivers unparalleled performance, setting a new standard in luxury yachting.

ERGONOMICS

Embark on unparalleled luxury and comfort with Kraken Marine’s meticulously crafted yacht. Engineered with a focus on optimum ergonomics, every detail of our vessel exudes sophistication and functionality. From the plush and inviting seats to the seamlessly integrated spaces, each element is thoughtfully designed to ensure maximum comfort and ease of access. Smart storage solutions and intuitive access points further elevate the experience, demonstrating our unwavering commitment to precision and excellence in design. With Kraken Marine, every journey is a seamless fusion of elegance and practicality, where every detail has been carefully considered for your utmost satisfaction.

INTEGRATION

Experience a paradigm shift in yacht design with Pace Yachts. Our innovative approach transcends geographical boundaries, offering a vessel meticulously crafted to excel in any environment, be it the North, the Mediterranean, or the vast expanse of the ocean. We redefine luxury by seamlessly adapting to every condition, ensuring unparalleled comfort and performance regardless of the setting. With Pace Yachts, embrace the sunshine, find solace in isolation, and immerse yourself in the pure bliss of oceanic delight with every voyage.

PANOROMA

Pace Yacht redefines the art of cruising with its unparalleled design, prioritizing both captain and passenger experience. Our commitment to maximizing natural light and panoramic views is evident in the spacious interior adorned with large tapered glass windows, inviting the joy of sunlight into every corner. Whether it’s the thrill of gazing upon the ocean through our freeboard windows, marveling at the sky from the comfort of the down cabin through our up-side windows, or basking in the warmth of the sun in the bathroom and down cabin, Pace Yacht ensures an immersive connection with nature. With a sunroof for the cabin and the unique ability to completely open the back of the cabin, seamlessly merging indoor and outdoor spaces, every journey becomes a sensory delight. Additionally, our engineering prowess ensures a trim-free acceleration, guaranteeing uninterrupted views and unparalleled comfort throughout your voyage. Discover the perfect harmony of luxury, innovation, and comfort aboard Pace Yacht.

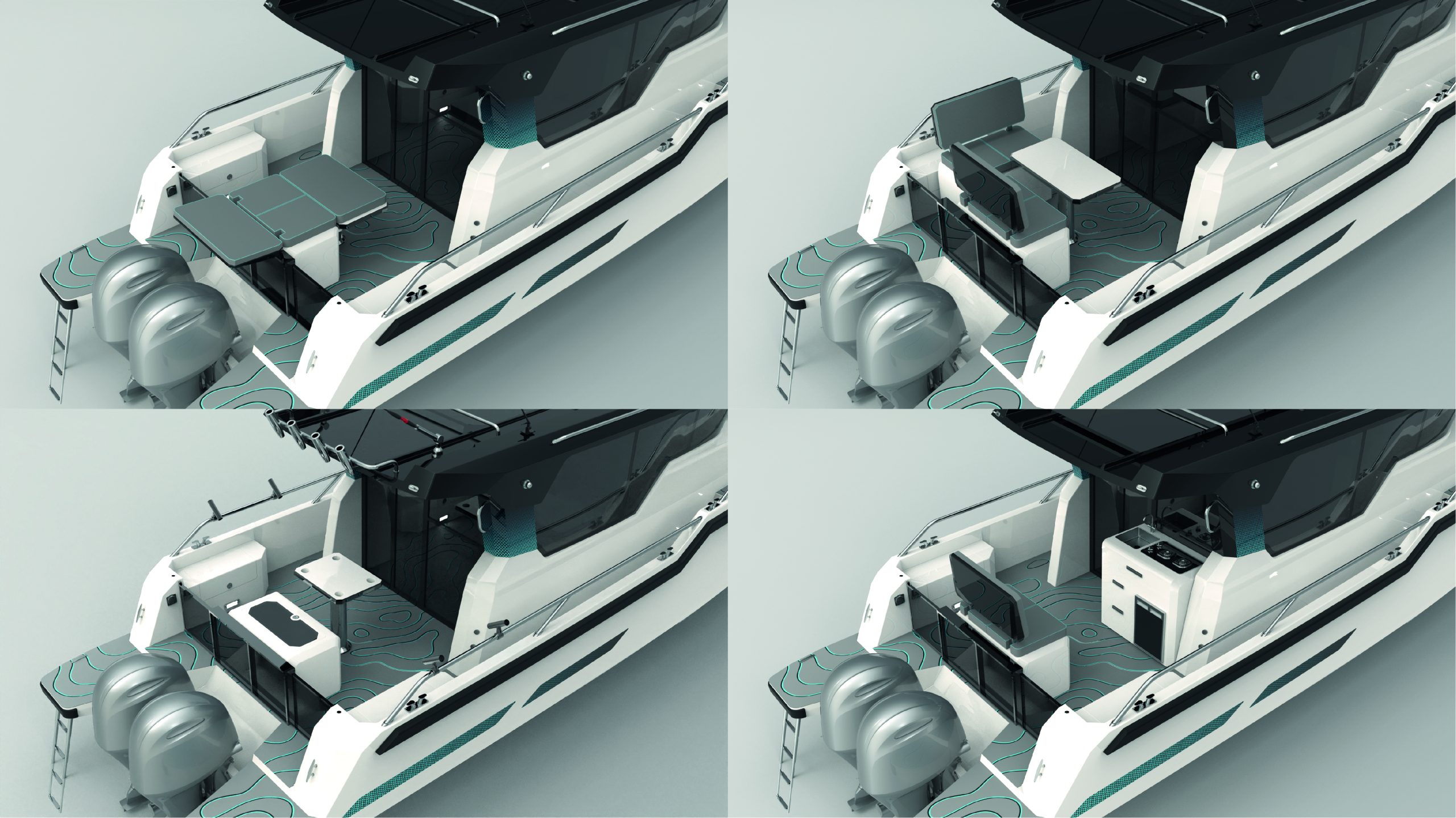

MODULARITY

Introducing Pace Yacht – a revolutionary shift in onboard mobility. With its groundbreaking design featuring a full-beam spacious wheelhouse and effortless walk-around access encircling the entire vessel, Pace Yacht redefines the experience of navigating the open waters. What sets Pace apart is its adaptability – modular units allow for seamless customization, enabling owners to effortlessly add or remove features such as kitchen units, wet bars, live bait areas, seating arrangements, and storage compartments even after purchase. Each unit is meticulously crafted to seamlessly integrate and interchange, granting owners the freedom to design their boat according to their unique preferences, offering endless possibilities for personalization. Welcome aboard the future of yachting with Pace Yacht.

ESSENTIALS

Welcome to our flagship yacht, where luxury meets functionality at every turn. Among our standout features is a fully enclosed bathroom, prioritizing your privacy and comfort while onboard. We understand the importance of feeling at ease in every aspect of your yacht experience, which is why we’ve meticulously designed our bathrooms to ensure utmost tranquility. No detail is overlooked – even our showers are enclosed, preventing any unwanted splashing and keeping the bathroom dry and pristine throughout your journey. Indulge in the ultimate relaxation and privacy with our thoughtfully crafted bathroom amenities, setting a new standard for onboard comfort and convenience.
